Unity で テトリス風ゲームを作ってみる（ソースコードとか）

Unity テトリス風ゲーム

まとめ

ここまでで作成したソースコード、Unity Project の構造などの情報を掲載。



GameConrtol Object



Field Object



NextArea Object



GameTitle Object



StartButton Object



GamePlay Object



GameOver Object



RestartButton Object

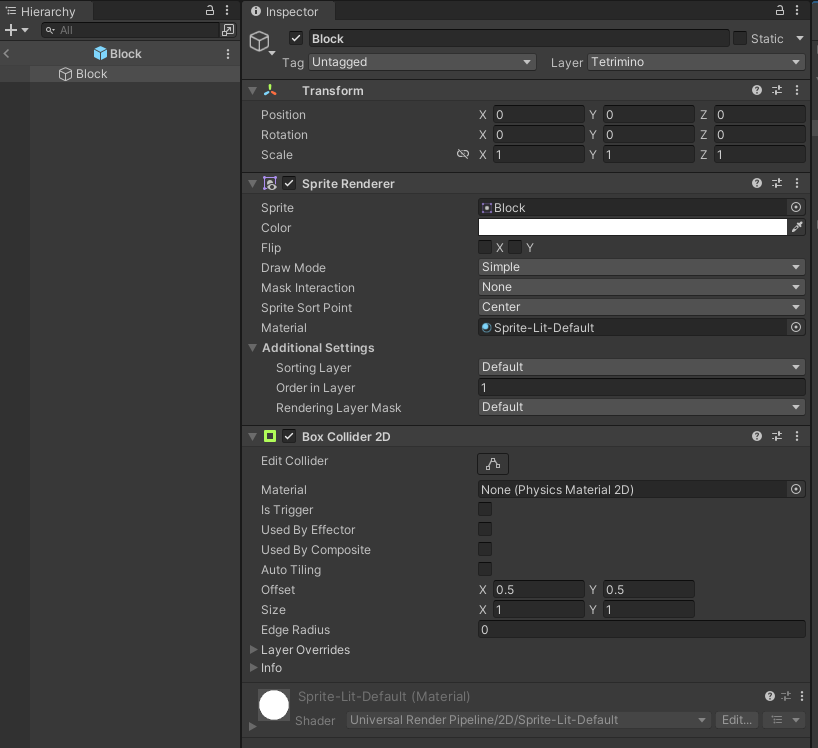

Block Prefab



Tetrimino Prefab



InputAction Map



GameControl.cs

  1. using System;
  2. using System.Collections;
  3. using System.Collections.Generic;
  4. using UnityEngine;
  5. using Cysharp.Threading.Tasks;
  6. using DG.Tweening;
  7.
  8. public class GameControl : MonoBehaviour, Field.IFieldEventListener, LevelScore.ILevelScoreEventListener {
  9.
  10.   private enum State {
  11.     Title,
  12.     Droping,
  13.     GameOver,
  14.   }
  15.
  16.   [SerializeField] Camera _camera;
  17.   [SerializeField] GameObject _gameTitlePanel;
  18.   [SerializeField] GameObject _gamePlayPanel;
  19.   [SerializeField] GameObject _gameOverPanel;
  20.   [SerializeField] Field _field;
  21.   [SerializeField] NextArea _nextArea;
  22.
  23.   private LevelScore _levelScore;
  24.   private bool _gotFirstFrame = false;
  25.   private bool _readyTetrimino = false;
  26.   private State _state = State.Title;
  27.
  28.   // IFieldEventListener Implementation
  29.   public void OnDeletedLine(int lines) {
  30.     if (lines > 0) {
  31.       _levelScore.AddScore(lines);
  32.     }
  33.     _readyTetrimino = true;
  34.   }
  35.
  36.   // ILevelScoreEventListener Implementation
  37.   public void OnLevelUp (int level) {
  38.     _field.SetDropSpeed(level);
  39.   }
  40.
  41.   // Button Event Callback
  42.   public void OnStartClick () {
  43.     _gameTitlePanel.SetActive(false);
  44.     _gamePlayPanel.SetActive(true);
  45.     _gameOverPanel.SetActive(false);
  46.     GameStart();
  47.   }
  48.
  49.   public void OnRestartClick () {
  50.     _levelScore.Reset();
  51.     _field.DestroyAllBlocks();
  52.     _nextArea.DestroyNextTetrimino();
  53.
  54.     PrepareNextTetrimino();
  55.     _gamePlayPanel.SetActive(true);
  56.     _gameOverPanel.SetActive(false);
  57.     _state = State.Droping;
  58.   }
  59.
  60.   private void Init () {
  61.     UnityEngine.Random.InitState( (int) DateTime.Now.Ticks);
  62.     DOTween.Init();
  63.     CameraSetting();
  64.     _state = State.Title;
  65.   }
  66.
  67.   private void GameStart () {
  68.     _field?.Init(this);
  69.     _nextArea?.Init();
  70.     CreateLevelScore();
  71.     PrepareNextTetrimino();
  72.     _state = State.Droping;
  73.   }
  74.
  75.   private void PrepareNextTetrimino() {
  76.     _nextArea.CreateNextTetrimino();
  77.     PushTetrimino2Field();
  78.     _nextArea.CreateNextTetrimino();
  79.     _readyTetrimino = false;
  80.   }
  81.
  82.   private void PushTetrimino2Field () {
  83.     var tetrimino = _nextArea.GetNextTetrimino();
  84.     var success = _field.PushTetrimino(tetrimino);
  85.     if (!success) {
  86.       _state = State.GameOver;
  87.       WaitGameOver();
  88.     }
  89.   }
  90.
  91.   private void CameraSetting () {
  92.     _camera.orthographicSize = ScreenConfig.Instance.OrthographicSize;
  93.
  94.     // change camera position so that left-bottom is (0,0).
  95.     _camera.transform.localPosition = new Vector3 (
  96.       ScreenConfig.Instance.OrthographicSize * ScreenConfig.Instance.ScreenAspect,
  97.       ScreenConfig.Instance.OrthographicSize,
  98.       -10);
  99.   }
  100.
  101.   private void CreateLevelScore () {
  102.     _levelScore = new LevelScore();
  103.     _levelScore.Init(this);
  104.   }
  105.
  106.   private void WaitGameOver () {
  107.     DOVirtual.DelayedCall(2, () => {
  108.       _gameOverPanel.SetActive(true);
  109.     });
  110.   }
  111.
  112.   // Update is called once per frame
  113.   void Update() {
  114.     if (!_gotFirstFrame) {
  115.       // Initialize once after first frame.
  116.       Init();
  117.       _gotFirstFrame = true;
  118.     }
  119.
  120.     if (_readyTetrimino && _state != State.GameOver) {
  121.       _readyTetrimino = false;
  122.       PushTetrimino2Field();
  123.       _nextArea.CreateNextTetrimino();
  124.     }
  125.   }
  126. }
  127.



Field.cs

  1. using System;
  2. using System.Linq;
  3. using System.Collections;
  4. using System.Collections.Generic;
  5. using UnityEngine;
  6. using UnityEngine.InputSystem;
  7.
  8. public class Field : MonoBehaviour, Tetrimino.ILockedEventListner {
  9.
  10.   public interface IFieldEventListener {
  11.     void OnDeletedLine (int lines);
  12.   }
  13.
  14.   private IFieldEventListener _fieldEventListener;
  15.   private List<GameObject> _fieldBlocks = new List<GameObject>();
  16.   private List<GameObject> _blocks = new List<GameObject>();
  17.   private Tetrimino _tetrimino;
  18.
  19.   // ILockedEventListner Implementation
  20.   public void OnLocked() {
  21.     var lines = CheckAndDeleteLines();
  22.     AddBlocks();
  23.     _fieldEventListener?.OnDeletedLine(lines);
  24.   }
  25.
  26.   public void Init(IFieldEventListener listener) {
  27.     this.transform.localPosition = new Vector3(
  28.       ScreenConfig.Instance.FieldOffset.x,
  29.       ScreenConfig.Instance.FieldOffset.y,
  30.       0);
  31.
  32.     // Create Field Area
  33.     // Bottom Wall
  34.     for (int x = 0; x < (ScreenConfig.FIELD_WIDTH+ScreenConfig.FIELD_SIDE_WIDTH*2); x++) {
  35.       CreateFieldBlock(new Vector2Int(x, 0));
  36.     }
  37.
  38.     // Left and Right Wall
  39.     for (int y = 0; y < (ScreenConfig.FIELD_HEIGHT+ScreenConfig.FIELD_BOTTOM_WIDTH); y++) {
  40.       CreateFieldBlock(new Vector2Int(0, y));
  41.       CreateFieldBlock(new Vector2Int(ScreenConfig.FIELD_WIDTH+ScreenConfig.FIELD_SIDE_WIDTH, y));
  42.     }
  43.
  44.     _fieldEventListener = listener;
  45.   }
  46.
  47.   public bool PushTetrimino (Tetrimino tetrimino) {
  48.     _tetrimino = tetrimino;
  49.     _tetrimino.SetListner (this);
  50.     _tetrimino.transform.SetParent(this.transform);
  51.     _tetrimino.transform.localPosition = new Vector3(
  52.       ScreenConfig.START_POS_X + ScreenConfig.FIELD_SIDE_WIDTH,
  53.       ScreenConfig.START_POS_Y + ScreenConfig.FIELD_BOTTOM_WIDTH,
  54.       0);
  55.
  56.     if (!_tetrimino.StartDrop()) {
  57.       // GameOver
  58.       return false;
  59.     }
  60.     return true;
  61.   }
  62.
  63.   public void SetDropSpeed (int level) {
  64.     _tetrimino?.SetDropSpeed(level);
  65.   }
  66.
  67.   // Add Blocks of Tetrimino to Field.
  68.   public void AddBlocks() {
  69.     var blocks = _tetrimino?.RemoveBlocks();
  70.
  71.     foreach (var block in blocks) {
  72.       block.transform.SetParent(this.transform);
  73.       block.layer = ScreenConfig.FIELD_LAYER;
  74.     }
  75.
  76.     _blocks.AddRange(blocks);
  77.     DestroyTetrimino();
  78.   }
  79.
  80.   // Destroy All Block Objects include Field blocks.
  81.   public void DestroyAllBlocks () {
  82.     DestroyTetrimino();
  83.
  84.     foreach (var block in _blocks) {
  85.       Destroy(block);
  86.     }
  87.     _blocks.Clear();
  88.   }
  89.
  90.   // Destroy Block Objects on Field.
  91.   public void DestroyBlocks (List<GameObject> blocks) {
  92.     foreach (var block in blocks) {
  93.       _blocks.Remove(block);
  94.       Destroy(block);
  95.     }
  96.   }
  97.
  98.   private void DestroyTetrimino () {
  99.     _tetrimino.DestroyBlocks();
  100.     Destroy(_tetrimino.gameObject);
  101.   }
  102.
  103.   // Create Field Block Object from Prefab.
  104.   private void CreateFieldBlock (Vector2Int pos) {
  105.     var prefab = Resources.Load("Prefabs/Block") as GameObject;
  106.     var copyObject = Instantiate(prefab, this.transform);
  107.     copyObject.transform.localPosition = new Vector3(pos.x, pos.y, 0);
  108.     copyObject.layer = ScreenConfig.FIELD_LAYER;
  109.     _fieldBlocks.Add(copyObject);
  110.   }
  111.
  112.   // Check Line whether it is filled or not at Tetrimino level.
  113.   private int CheckAndDeleteLines () {
  114.     var pos = _tetrimino.GetBlocksPosition();
  115.     var max = pos.Select(p => p.y).Max();
  116.     var min = pos.Select(p => p.y).Min();
  117.
  118.     var deletedLineCount = 0;
  119.     for (float y = min; y <= max; y++) {
  120.       var deleteBlocks = CheckLine(y);
  121.       if (deleteBlocks != null) {
  122.         DestroyBlocks(deleteBlocks);
  123.         deletedLineCount++;
  124.         DropLines(y);
  125.       }
  126.     }
  127.
  128.     return deletedLineCount;
  129.   }
  130.
  131.   private List<GameObject> CheckLine (float y) {
  132.     var detectedBlocks = DetectBlocks(y);
  133.     if (detectedBlocks != null && detectedBlocks.Count() >= ScreenConfig.FIELD_WIDTH) {
  134.       return detectedBlocks;
  135.     }
  136.     return null;
  137.   }
  138.
  139.   private List<GameObject> DetectBlocks (float y) {
  140.     ContactFilter2D contactFilter = new ContactFilter2D();
  141.     var start = new Vector2(
  142.       ScreenConfig.FIELD_SIDE_WIDTH + ScreenConfig.Instance.FieldOffset.x + 0.5f,
  143.       y + 0.5f
  144.     );
  145.
  146.     var length = ScreenConfig.FIELD_WIDTH - 1f;
  147.     var hitResult = new List<RaycastHit2D>();
  148.     var hitCount = Physics2D.Raycast(
  149.       start, // レイの原点
  150.       Vector2.right, // レイの方向
  151.       contactFilter.NoFilter(), // チェックする対象を設定するフィルター
  152.       hitResult, // ヒットしたオブジェクトの情報
  153.       length // レイの長さ
  154.     );
  155.
  156.     //Debug.DrawRay(start, Vector2.right * length, Color.red, 2f); // Debug用
  157.
  158.     if (hitCount > 0) {
  159.       var detectedBlocks = new List<GameObject>();
  160.       foreach (var hit in hitResult) {
  161.         detectedBlocks.Add(hit.collider.gameObject);
  162.       }
  163.       return detectedBlocks;
  164.     }
  165.
  166.     return null;
  167.   }
  168.
  169.   private void DropLines (float deletedLineYPos) {
  170.     for (float y = deletedLineYPos+1; y < ScreenConfig.FIELD_HEIGHT; y++) {
  171.       var detectedBlocks = DetectBlocks(y);
  172.       if (detectedBlocks != null) {
  173.         DropLine(detectedBlocks);
  174.       }
  175.     }
  176.   }
  177.
  178.   private void DropLine (List<GameObject> blocks) {
  179.     foreach (var block in blocks) {
  180.       block.transform.position += Vector3.down; // down is -1
  181.     }
  182.   }
  183. }
  184.



NextArea.cs

  1. using System;
  2. using System.Linq;
  3. using System.Collections;
  4. using System.Collections.Generic;
  5. using UnityEngine;
  6.
  7. public class NextArea : MonoBehaviour {
  8.
  9.   // Next Area Position and Size
  10.   private const int POSITION_X = 5;
  11.   private const int POSITION_Y = 15;
  12.   private const float WIDTH = 4f;
  13.   private const float HEIGHT = 4f;
  14.
  15.   // Tetrimino Object
  16.   private Tetrimino _next;
  17.
  18.   public void Init () {
  19.     _next = null;
  20.     this.transform.localPosition = new Vector3(POSITION_X, POSITION_Y, 0f);
  21.   }
  22.
  23.   public void CreateNextTetrimino () {
  24.     _next = CreateTetriminoByRandom();
  25.   }
  26.
  27.   public Tetrimino GetNextTetrimino () {
  28.     return _next;
  29.   }
  30.
  31.   public void DestroyNextTetrimino () {
  32.     if (_next != null) {
  33.       _next.DestroyBlocks();
  34.       Destroy(_next.gameObject);
  35.       _next = null;
  36.     }
  37.   }
  38.
  39.   private Tetrimino CreateTetriminoByRandom () {
  40.     var prefab = Resources.Load("Prefabs/Tetrimino") as GameObject;
  41.     var copyObject = Instantiate(prefab, this.transform);
  42.     var next = copyObject.GetComponent<Tetrimino>();
  43.     var type = (Tetrimino.Type)UnityEngine.Random.Range(0, (int)Tetrimino.Type.MAX);
  44.     next.Init(type);
  45.
  46.     // set position in Center of NextArea
  47.     var width = next.GetWidth();
  48.     var height = next.GetHeight();
  49.     next.transform.localPosition = new Vector3(
  50.       (WIDTH - width) * 0.5f,
  51.       (HEIGHT - height) * 0.5f,
  52.       0);
  53.     return next;
  54.   }
  55. }
  56.



Tetrimino.cs

  1. using System;
  2. using System.Linq;
  3. using System.Collections;
  4. using System.Collections.Generic;
  5. using UnityEngine;
  6. using UnityEngine.InputSystem;
  7. using UnityEngine.U2D;
  8.
  9. public class Tetrimino : MonoBehaviour {
  10.
  11.   public interface ILockedEventListner {
  12.     void OnLocked ();
  13.   }
  14.
  15.   private ILockedEventListner _lockedEventListner;
  16.
  17.   public enum State {
  18.     Idle,
  19.     Drop,
  20.     HighSpeedDrop,
  21.     Lock,
  22.     MAX
  23.   };
  24.
  25.   public enum Rotation {
  26.     R0 = 0,
  27.     R90,
  28.     R180,
  29.     R270,
  30.     MAX
  31.   };
  32.
  33.   public enum Type {
  34.     I = 0,
  35.     L,
  36.     J,
  37.     T,
  38.     S,
  39.     Z,
  40.     O,
  41.     MAX
  42.   };
  43.
  44.   private readonly int [,,] TETRIMINO = new int [,,] {
  45.     new int[,,] { // I
  46.       {
  47.         {0,0}, {1,0}, {2,0}, {3,0} // 0
  48.       },{
  49.         {1,0}, {1,1}, {1,2}, {1,3} // 90
  50.       },{
  51.         {0,0}, {1,0}, {2,0}, {3,0} // 180
  52.       },{
  53.         {1,0}, {1,1}, {1,2}, {1,3} // 270
  54.       }
  55.     },
  56.     new int[,,] { // L
  57.       {
  58.         {0,0}, {1,0}, {2,0}, {2,1} // 0
  59.       },{
  60.         {1,0}, {1,1}, {1,2}, {0,2} // 90
  61.       },{
  62.         {0,0}, {0,1}, {1,1}, {2,1} // 180
  63.       },{
  64.         {0,0}, {1,0}, {0,1}, {0,2} // 270
  65.       }
  66.     },
  67.     new int[,,] { // J
  68.       {
  69.         {0,0}, {1,0}, {2,0}, {0,1} // 0
  70.       },{
  71.         {0,0}, {1,0}, {1,1}, {1,2} // 90
  72.       },{
  73.         {0,1}, {1,1}, {2,1}, {2,0} // 180
  74.       },{
  75.         {0,0}, {0,1}, {0,2}, {1,2} // 270
  76.       }
  77.     },
  78.     new int[,,] {
  79.       // T
  80.       {
  81.         {0,0}, {1,0}, {2,0}, {1,1} // 0
  82.       },{
  83.         {1,0}, {0,1}, {1,1}, {1,2} // 90
  84.       },{
  85.         {1,0}, {0,1}, {1,1}, {2,1} // 180
  86.       },{
  87.         {0,0}, {0,1}, {0,2}, {1,1} // 270
  88.       }
  89.     },
  90.     new int[,,] {
  91.       // S
  92.       {
  93.         {0,0}, {1,0}, {1,1}, {2,1} // 0
  94.       },{
  95.         {1,0}, {0,1}, {1,1}, {0,2} // 90
  96.       },{
  97.         {0,0}, {1,0}, {1,1}, {2,1} // 180
  98.       },{
  99.         {1,0}, {0,1}, {1,1}, {0,2} // 270
  100.       }
  101.     },
  102.     new int[,,] {
  103.       // Z
  104.       {
  105.         {1,0}, {2,0}, {0,1}, {1,1} // 0
  106.       },{
  107.         {0,0}, {0,1}, {1,1}, {1,2} // 90
  108.       },{
  109.         {1,0}, {2,0}, {0,1}, {1,1} // 180
  110.       },{
  111.         {0,0}, {0,1}, {1,1}, {1,2} // 270
  112.       }
  113.     },
  114.     new int[,,] {
  115.       // O
  116.       {
  117.         {0,0}, {1,0}, {0,1}, {1,1} // 0
  118.       },{
  119.         {0,0}, {1,0}, {0,1}, {1,1} // 90
  120.       },{
  121.         {0,0}, {1,0}, {0,1}, {1,1} // 180
  122.       },{
  123.         {0,0}, {1,0}, {0,1}, {1,1} // 270
  124.       }
  125.     }
  126.   };
  127.
  128.   private readonly Color TETRIMINO_COLOR = new Color {
  129.     new Color(0.0f, 1.0f, 1.0f), // I
  130.     new Color(1.0f, 0.5f, 0.0f), // L
  131.     new Color(0.0f, 0.0f, 1.0f), // J
  132.     new Color(1.0f, 0.0f, 1.0f), // T
  133.     new Color(0.0f, 1.0f, 0.0f), // S
  134.     new Color(1.0f, 1.0f, 0.0f), // Z
  135.     new Color(1.0f, 0.0f, 0.0f) // O
  136.   };
  137.
  138.   private const float HIGH_SPEED_RATIO = 0.05f; // 20 times of normal speed
  139.   private const float DROP_LEVEL_RATIO = 0.95f; // 5% speed up per level
  140.
  141.   [SerializeField] private List<GameObject> _blockPrefabs;
  142.   private Type _type;
  143.   private Rotation _rotation;
  144.   private float _totalDeltaTime;
  145.   private ContactFilter2D _contactFilter;
  146.   private float _fallTime;
  147.   private float _lockTime;
  148.   private State _state;
  149.
  150.   public void Init (Type type, ILockedEventListner lockedEventListner) {
  151.     this.Init(type);
  152.     _lockedEventListner = lockedEventListner;
  153.   }
  154.
  155.   public void Init (Type type) {
  156.     _type = type;
  157.     _rotation = Rotation.R0;
  158.     LocateBlocks ();
  159.     SetColor();
  160.     _totalDeltaTime = 0f;
  161.     _fallTime = 1.0f;
  162.     _lockTime = 0.5f;
  163.     _state = State.Idle;
  164.     _contactFilter = new ContactFilter2D();
  165.     _contactFilter.layerMask = LayerMask.GetMask("Field");
  166.     _contactFilter.useLayerMask = true;
  167.   }
  168.
  169.   public void DestroyBlocks () {
  170.     foreach (var block in _blockPrefabs) {
  171.       Destroy(block);
  172.     }
  173.     _blockPrefabs.Clear();
  174.   }
  175.
  176.   public void SetListner (ILockedEventListner lockedEventListner) {
  177.     _lockedEventListner = lockedEventListner;
  178.   }
  179.
  180.   public bool StartDrop () {
  181.     var isCollision = false;
  182.     foreach (var block in _blockPrefabs) {
  183.       if (CollisionCheck(block.transform.position + new Vector3(0.5f, 0.5f, 0))) {
  184.         isCollision = true;
  185.         break;
  186.       }
  187.     }
  188.
  189.     if (isCollision) {
  190.       return false;
  191.     }
  192.
  193.     _state = State.Drop;
  194.     return true;
  195.   }
  196.
  197.   public void SetDropSpeed (int level) {
  198.     var falltime = 1.0f;
  199.     for (var i = 0; i < level; i++) {
  200.       falltime = falltime * DROP_LEVEL_RATIO;
  201.     }
  202.     _fallTime = falltime;
  203.   }
  204.
  205.   public void Rotate (int degree) {
  206.     var rotation = RotateAngle(_rotation, degree);
  207.     var positions = BlocksPosition(_type, rotation);
  208.     foreach (var pos in positions)
  209.       if (CollisionCheck(this.transform.position + new Vector3(pos.x, pos.y, 0))) return;
  210.     _rotation = rotation;
  211.     LocateBlocks();
  212.   }
  213.
  214.   public List<GameObject> GetBlocks() {
  215.     return _blockPrefabs;
  216.   }
  217.
  218.   public List<GameObject> RemoveBlocks() {
  219.     var blocks = new List<GameObject>();
  220.     blocks.AddRange(_blockPrefabs);
  221.     _blockPrefabs.Clear();
  222.     return blocks;
  223.   }
  224.
  225.   public float GetWidth() {
  226.     var pos = GetBlocksPosition();
  227.     var max = pos.Select(p => p.x).Max();
  228.     var min = pos.Select(p => p.x).Min();
  229.     return max - min +1;
  230.   }
  231.
  232.   public float GetHeight() {
  233.     var pos = GetBlocksPosition();
  234.     var max = pos.Select(p => p.y).Max();
  235.     var min = pos.Select(p => p.y).Min();
  236.     return max - min +1;
  237.   }
  238.
  239.   public List<Vector2> GetBlocksPosition () {
  240.     var pos = new List<Vector2>();
  241.     foreach (var block in _blockPrefabs) {
  242.       pos.Add(block.transform.position);
  243.     }
  244.     return pos;
  245.   }
  246.
  247.   public void OnMoveLeftEvent (InputAction.CallbackContext context) {
  248.     if (!IsOperatable() || context.phase != InputActionPhase.Started)
  249.       return;
  250.
  251.     OnMoveHorizontal(Vector2.left);
  252.   }
  253.
  254.   public void OnMoveRightEvent (InputAction.CallbackContext context) {
  255.     if (!IsOperatable() || context.phase != InputActionPhase.Started)
  256.       return;
  257.
  258.     OnMoveHorizontal(Vector2.right);
  259.   }
  260.
  261.   private bool OnMoveHorizontal (Vector2 direct) {
  262.     var isCollision = false;
  263.     foreach (var block in _blockPrefabs) {
  264.       if (CollisionCheck(block.transform, direct)) {
  265.         isCollision = true;
  266.         break;
  267.       }
  268.     }
  269.
  270.     if (isCollision) return false;
  271.
  272.     transform.localPosition = new Vector3 (
  273.       transform.localPosition.x + direct.x,
  274.       transform.localPosition.y,
  275.       transform.localPosition.z);
  276.
  277.     return true;
  278.   }
  279.
  280.   public void OnMoveDownEvent (InputAction.CallbackContext context) {
  281.     if (IsOperatable() && context.phase == InputActionPhase.Started) {
  282.       _state = State.HighSpeedDrop;
  283.     }
  284.   }
  285.
  286.   public void OnTurnLeftEvent (InputAction.CallbackContext context) {
  287.     if (IsOperatable() && context.phase == InputActionPhase.Started) {
  288.       Rotate(90);
  289.     }
  290.   }
  291.
  292.   public void OnTurnRightEvent (InputAction.CallbackContext context) {
  293.     if (IsOperatable() && context.phase == InputActionPhase.Started) {
  294.       Rotate(-90);
  295.     }
  296.   }
  297.
  298.   private Rotation RotateAngle (Rotation rotation, int degree) {
  299.     var deg = degree % 360;
  300.     var rot = ( (int) rotation * 90 + deg);
  301.     if (rot < 0) rot = 360 + rot;
  302.     rot = rot / 90;
  303.
  304.     switch (rot) {
  305.       case 0:
  306.         return Rotation.R0;
  307.       case 1:
  308.         return Rotation.R90;
  309.       case 2:
  310.         return Rotation.R180;
  311.       case 3:
  312.         return Rotation.R270;
  313.       default:
  314.         return Rotation.R0;
  315.     }
  316.   }
  317.
  318.   private bool CollisionCheck (Vector2 position) {
  319.     var hitResult = new List<RaycastHit2D>();
  320.     var start = position;
  321.     var length = 0.1f;
  322.     var direct = Vector2.down;
  323.     var hitCount = Physics2D.Raycast(
  324.       start, // レイの原点
  325.       direct, // レイの方向
  326.       _contactFilter, // チェックする対象を設定するフィルター
  327.       hitResult, // ヒットしたオブジェクトの情報
  328.       length // レイの長さ
  329.       );
  330.
  331.     //Debug.DrawRay(start, direct * length, Color.blue, 1f); // Debug用
  332.     return (hitCount > 0)? true : false;
  333.   }
  334.
  335.   private bool IsOperatable () {
  336.     return _state == State.Drop || _state == State.HighSpeedDrop || _state == State.Lock;
  337.   }
  338.
  339.   private void SetColor () {
  340.     foreach (var block in _blockPrefabs) {
  341.       block.GetComponent<SpriteRenderer>().color = TETRIMINO_COLOR[(int)_type];
  342.     }
  343.   }
  344.
  345.   private void LocateBlocks () {
  346.     var positions = BlocksPosition(_type, _rotation);
  347.     var idx = 0;
  348.     foreach (var block in _blockPrefabs) {
  349.       block.transform.localPosition = new Vector2(positions[idx].x, positions[idx].y);
  350.       idx++;
  351.     }
  352.   }
  353.
  354.   private Vector2Int BlocksPosition (Type type, Rotation rotation) {
  355.     var positions = new Vector2Int[4];
  356.     for (var i = 0; i < 4; i++) {
  357.       positions[i] = new Vector2Int(
  358.         TETRIMINO[(int)type][(int)rotation, i, 0],
  359.         TETRIMINO[(int)type][(int)rotation, i, 1]);
  360.     }
  361.     return positions;
  362.   }
  363.
  364.   // return true if collision is detected
  365.   private bool FreeFall () {
  366.     var isCollision = false;
  367.     foreach (var block in _blockPrefabs) {
  368.       if (CollisionCheck (block.transform, Vector2.down)) {
  369.         isCollision = true;
  370.         break;
  371.       }
  372.     }
  373.
  374.     if (isCollision) return true;
  375.
  376.     this.transform.localPosition = new Vector3(
  377.       this.transform.localPosition.x,
  378.       this.transform.localPosition.y - 1.0f,
  379.       this.transform.localPosition.z);
  380.
  381.     return false;
  382.   }
  383.
  384.   private bool CollisionCheck (Transform block, Vector2 direct) {
  385.     var start = new Vector2 (
  386.       block.position.x + block.lossyScale.x * 0.5f,
  387.       block.position.y + block.lossyScale.y * 0.5f);
  388.     var length = block.lossyScale.x; // ブロックは正方形なので、xとyの長さは同じ
  389.
  390.     var hit = Physics2D.Raycast (
  391.       start, // レイの原点
  392.       direct, // レイの方向
  393.       length, // レイの長さ
  394.       LayerMask.GetMask("Field") // チェックする対象を設定するフィルター
  395.       );
  396.
  397.     //Debug.DrawRay(start, direct * length, Color.red, 1f); // Debug用
  398.     return (hit.collider != null)? true : false;
  399.   }
  400.
  401.   private void TickEventInDropState () {
  402.     if (_totalDeltaTime > _fallTime) {
  403.       var isCollision = FreeFall();
  404.       if (isCollision) {
  405.         _state = State.Lock;
  406.       }
  407.       _totalDeltaTime = 0f;
  408.     }
  409.   }
  410.
  411.   private void TickEventInHighSpeedDropState () {
  412.     if (_totalDeltaTime > _fallTime*HIGH_SPEED_RATIO) {
  413.       var isCollision = FreeFall();
  414.       if (isCollision) {
  415.         _state = State.Lock;
  416.       }
  417.       _totalDeltaTime = 0f;
  418.     }
  419.   }
  420.
  421.   private void TickEventInLockState () {
  422.     if (_totalDeltaTime > _lockTime) {
  423.       _lockedEventListner?.OnLocked();
  424.       _state = State.Idle;
  425.       _totalDeltaTime = 0f;
  426.     }
  427.   }
  428.
  429.   void Update() {
  430.     _totalDeltaTime += Time.deltaTime;
  431.     switch (_state) {
  432.       case State.Idle:
  433.         break;
  434.       case State.Drop:
  435.         TickEventInDropState();
  436.         break;
  437.       case State.HighSpeedDrop:
  438.         TickEventInHighSpeedDropState();
  439.         break;
  440.       case State.Lock:
  441.         TickEventInLockState();
  442.         break;
  443.     }
  444.   }
  445. }
  446.



LevelScore.cs

  1. using System;
  2. using System.Linq;
  3. using System.Collections;
  4. using System.Collections.Generic;
  5. using UnityEngine;
  6. using TMPro;
  7.
  8. public class LevelScore {
  9.
  10.   public interface ILevelScoreEventListener {
  11.     void OnLevelUp (int level);
  12.   }
  13.
  14.   private ILevelScoreEventListener _levelScoreEventListener;
  15.
  16.   TextMeshProUGUI _scoreText;
  17.   TextMeshProUGUI _levelText;
  18.   private readonly int SCORE_RATE = new int[] { 10, 20, 40, 80 };
  19.   private const int MAX_SCORE = 9999;
  20.   private const int MAX_LEVEL = 99;
  21.   private int _score = 0;
  22.   private int _level = 1;
  23.   private int _deletedLineCount = 0;
  24.
  25.   public LevelScore () {
  26.   }
  27.
  28.   public void Init (ILevelScoreEventListener listener) {
  29.     _score = 0;
  30.     _level = 1;
  31.     _deletedLineCount = 0;
  32.     _levelScoreEventListener = listener;
  33.     _scoreText = GameObject.Find("ScoreText").GetComponent<TextMeshProUGUI>();
  34.     _levelText = GameObject.Find("LevelText").GetComponent<TextMeshProUGUI>();
  35.     UpdateScoreText();
  36.     UpdateLevelText();
  37.   }
  38.
  39.   public void Reset () {
  40.     _score = 0;
  41.     _level = 1;
  42.     _deletedLineCount = 0;
  43.     UpdateScoreText();
  44.     UpdateLevelText();
  45.   }
  46.
  47.   public void AddScore (int deletedLineCount) {
  48.     _deletedLineCount += deletedLineCount;
  49.     _score += SCORE_RATE[deletedLineCount - 1];
  50.     if (_score > MAX_SCORE) {
  51.       _score = MAX_SCORE;
  52.     }
  53.     UpdateScoreText();
  54.     UpdateLevel();
  55.   }
  56.
  57.   private void UpdateLevel () {
  58.     var prev = _level;
  59.     _level = _deletedLineCount / 10 + 1;
  60.     if (_level > MAX_LEVEL) {
  61.       _level = MAX_LEVEL;
  62.     }
  63.
  64.     if (prev != _level) {
  65.       _levelScoreEventListener?.OnLevelUp(_level);
  66.       UpdateLevelText();
  67.     }
  68.   }
  69.
  70.   private void UpdateScoreText () {
  71.     _scoreText.text = $"{_score:D4}";
  72.   }
  73.
  74.   private void UpdateLevelText () {
  75.     _levelText.text = $"{_level:D2}";
  76.   }
  77. }
  78.



ScreenConfig.cs

  1. using System.Collections;
  2. using System.Collections.Generic;
  3. using UnityEngine;
  4.
  5. public class ScreenConfig {
  6.   // Singleton
  7.   public static ScreenConfig instance = null;
  8.
  9.   public const float PIXEL_PER_UNIT = 128f; // Block Texture Pixel size per Unit
  10.   public const int FIELD_WIDTH = 10;
  11.   public const int FIELD_HEIGHT = 20;
  12.   public const int FIELD_BOTTOM_WIDTH = 1;
  13.   public const int FIELD_SIDE_WIDTH = 1;
  14.   public const int START_POS_X = 3;
  15.   public const int START_POS_Y = 16;
  16.   public const float SCREEN_OFFSET_RATIO = 0.05f;
  17.   public Vector2 FieldOffset {get; private set;} // field offset in Unit
  18.   public float ScreenAspect {get; private set;} // screen aspect width/height
  19.   public float OrthographicSize {get; private set;} // orthographic size in Unit
  20.   public const int BLOCK_LAYER = 6;
  21.   public const int FIELD_LAYER = 7;
  22.   public const int TETRIMINO_LAYER = 8;
  23.
  24.   // Singleton
  25.   public static ScreenConfig Instance {
  26.     get {
  27.       if (instance == null) {
  28.         instance = new ScreenConfig();
  29.       }
  30.       return instance;
  31.     }
  32.   }
  33.
  34.   private ScreenConfig () {
  35.     Init();
  36.   }
  37.
  38.   private void Init() {
  39.     ScreenAspect = Screen.safeArea.width / Screen.safeArea.height;
  40.
  41.     var offsetHight = Screen.safeArea.height * SCREEN_OFFSET_RATIO; // pixel
  42.
  43.     OrthographicSize = (float)(FIELD_HEIGHT+FIELD_BOTTOM_WIDTH) * 0.5f
  44.                          + offsetHight / PIXEL_PER_UNIT; // Unit
  45.
  46.     FieldOffset = new Vector2(
  47.       OrthographicSize * ScreenAspect - (float)(FIELD_WIDTH+FIELD_SIDE_WIDTH*2f) * 0.5f,
  48.       offsetHight / PIXEL_PER_UNIT
  49.     );
  50.   }
  51. }
